Clipsal 9W LED Downlight Kit - SMD | 90mm | IC-4 | Dimmable | Tri - Colour


Buy In Bulk & Save!

Buy 10 to 30: Pay $25.95
In stock

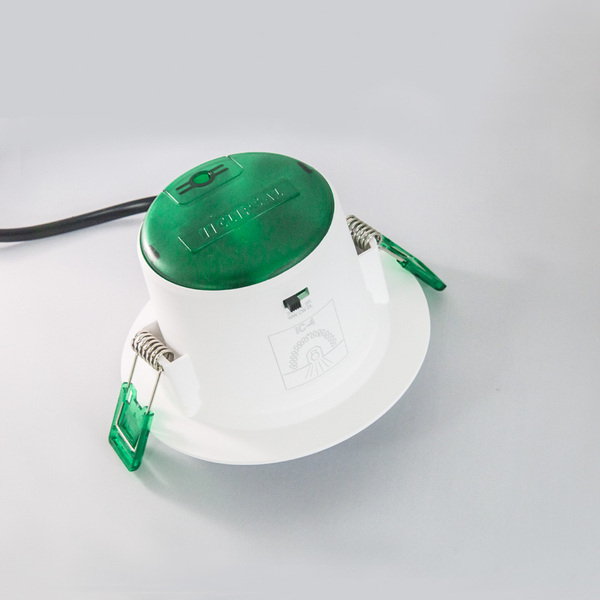

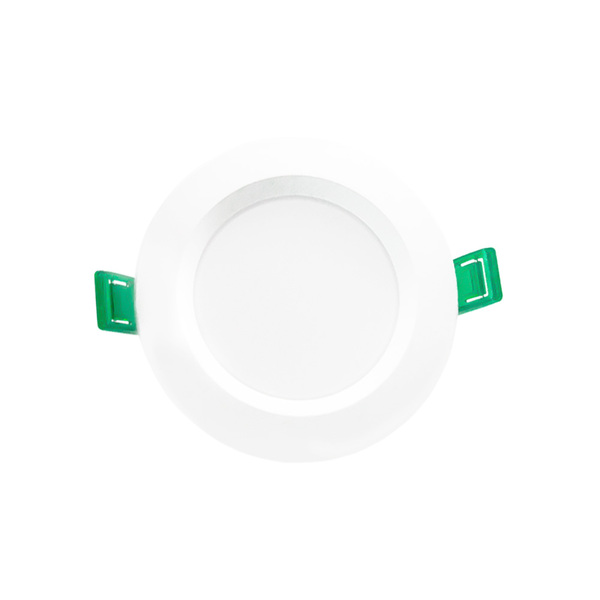

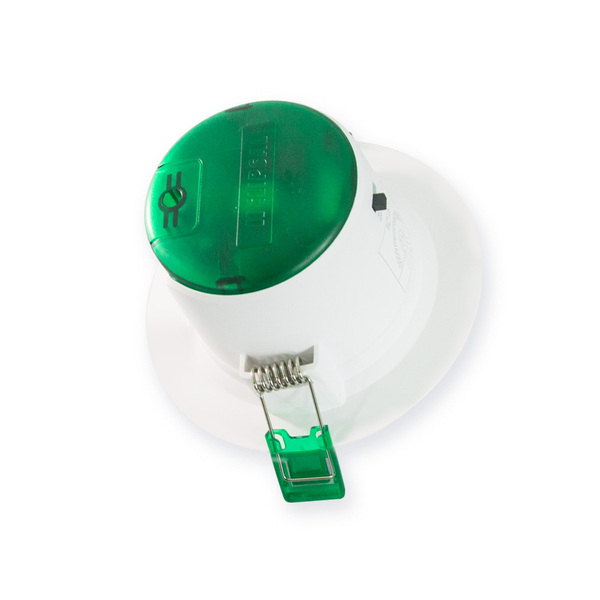

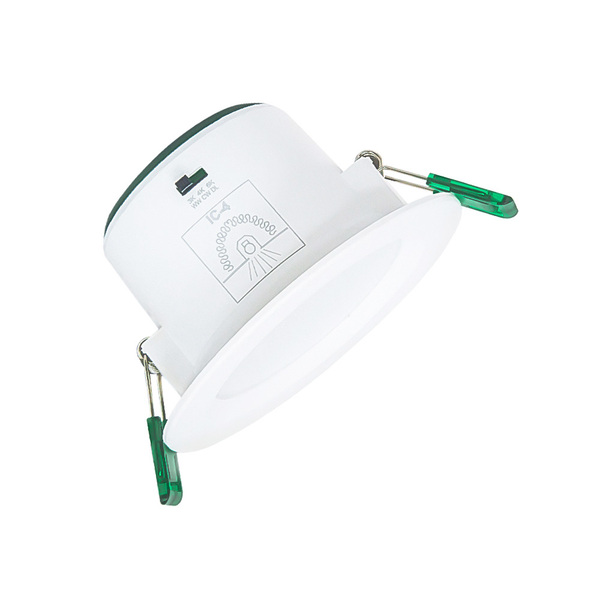

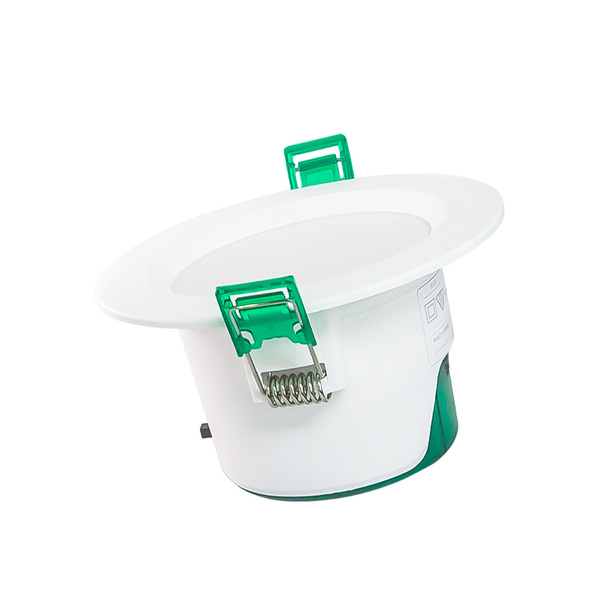

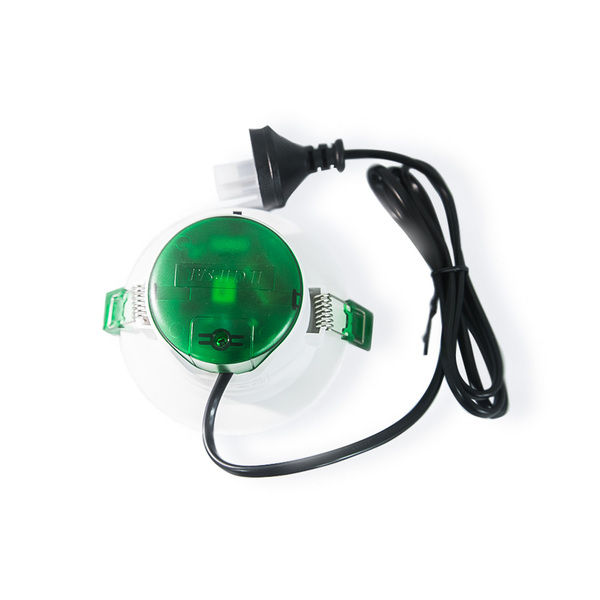

Clipsal TPDL1C2 white dimmable LED downlight.

Can be set to warm white, cool white or daylight by a switch on the back.

Best flickering free downlight on the market for Smart LED dimmers

Tested on Nue, Ctec, Ctec Mirror and Briliant Smart dimmers.

Designed and tested to work with Clipsal 30/40/60 mech LED Dimmers to ensure smooth dimming performance and true compatibility



  • Simple Fusion Technology Integral driver,
  • Tri-Temperature selection

Features / Benefits

  • Low profile Integral Driver
  • The tri-temperature colour switch provides multiple colour outputs to be selected on installation (Default 3000K)
  • Twist lock trim allows for the Brushed Chrome option
  • The IC-4 rating allows the fitting to be abutted and covered by building material
  • Dimmable with Clipsal LED dimming technology products
  • Superior finish metal trim


Catalogue Number TPDL1C1
Voltage rating 240 Vac, 50 Hz
Total System Power 9 W
Dimmable Yes
Colour Temperature 3000K / 4000K / 6000K Switchable
Lumens >700 >730 >750
CRI > 80
IP Rating  IP44 (from front)
Beam Angle 90 degrees
Lifespan (L70) 30,000 hrs
Power Factor 0.9
Operating Temperature - 10˚C to +45˚C
Operating Humidity  +10% to +95% Non Condensing



3 Years Seller's Warranty
