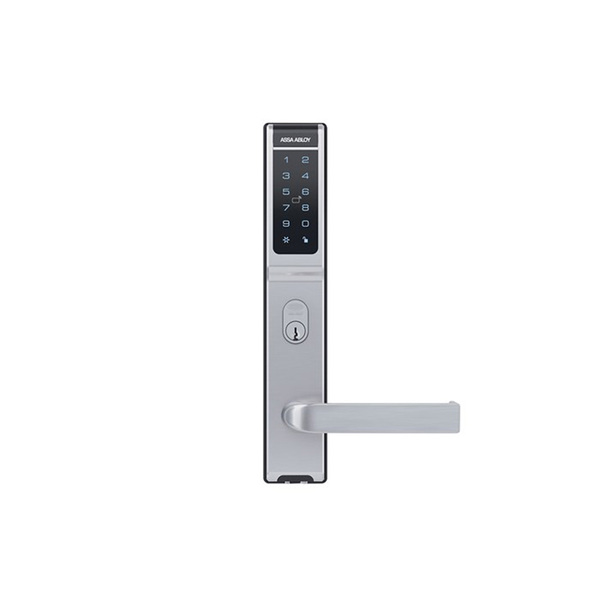

Aperio Smart Wireless Lever Lock - V3 AU100 - 3772 | Australian Escutcheon | Fire rated for Apartment Door

$1,019.00
SKU: LOKS30001
Quantity:
Backorder available
Contact us at (02)83860784 for more information

ASSA ABLOY’s Aperio® technology is leading the evolution of Online Wireless Door Locks. The new AU100 is a fully commercial grade digital lockset that offers the durability and quality that is synonymous with ASSA ABLOY. Aperio® is well known to provide a cost effective migration to an online electronic access control door. ASSA ABLOY’s AU100 is now fully retrofitable with Lockwood mortice variants without modification to the mortice whatsoever.

In addition, for the first time the internal lever and door position can now be wirelessly monitored. A capacitive keypad and proximity reader are also included in the one lock. Sophisticated battery powered technology communicates wirelessly to a hub. The hub is then wired directly to the access control system and enables standard online access control functionality at significantly reduced costs to that of a hard wired door.

The AU100 features the V3 platform, which enables high frequency entrance doors to operate for two years on a standard set of batteries; maintaining remote opening functions of typically 5 seconds communication time between the Aperio lock and the access control system throughout the battery life. ASSA ABLOY’s AU100 provides the benchmark for premium wireless digital locking. The strong vandal proof keypad is weather rated for outdoor conditions including protection against light rain, sun and dust.

The AU100 features ultra-smooth lever action provided by the ergonomic Lever: 77A. Designed to be compliant with the Australian Disabled Door Act, the AU100 has undergone severe vandal testing and has a strength rating of up to SL8.

  • External - lever is always locked. To unlock badge card and activate lever
  • Door automatically re-locks after set time. Can also be opened via key override
  • Keypad – Touch keypad to wake up unit, enter pin and activate lever
  • Internal - lever is set to escape free egress at all times
  • REX - Allows the access control to recognise valid egress when the internal lever is pressed followed by DPS
  • DPS – Allows the access control system to detect DOTL and forced door

Applications

  • Internal doors and semi protected outdoor
  • Retrofit mechanical Mortice Locks
  • Expand existing access control installations
  • New access control installations
  • Doors that can’t be hard wired
  • Heritage listed buildings

Electronic Features

  • Wireless online access control
  • Authorisation changes in real time
  • Audit trails and time zones managed through existing system
  • Additional Key Override
  • Rex (internal lever monitoring)
  • Door position switch
  • Smart off line credential cache for last 200 users
  • Store last 200 events and audit trails locally in the lock
  • Battery powered – up to 40,000 operations
  • LED status
  • Battery low warning sent to EAC system
  • Powerful new electronics with USB interface
  • Supports multiple RFID credentials and Seos mobile access
  • Heartbeat communication: 5-10 seconds
  • Remote door opening/locking functions
  • Supports multiple high frequency RFID technologies and Seos mobile access

Mechanical Features

  • Emergency egress
  • Compatible with Lockwood 3772 and 5782 Series Mechanical Mortice Locks
  • Additional key override
  • Fire rated
  • Multiple lockset formats
  • Emergency egress

Standards and Compliance

  •  Fire Rated: Successfully tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1 2005 - Part 1: Fire Resistant Doorsets
  •  Australian Lock Standard: (Security) (AS4145.2:1993)
  •  Durability - Australian Lock Standard: (Durability) (AS4145.2:1993)
  •  Australian Electrical Regulatory Compliance
  •  European Electric Compliance

Electronic Technical Information

  • Battery Type: 4 x AA Alkaline
  • Battery Lifetime: >40,000 cycles
  • Radio Standard: IEEE802.15.4 (2.SGHz)
  • Encryption: AES128Bit
  • Wireless Range: 5-25m depending on location of Hub & Environment
  • RFID Technology: Mifare Classic / Desfire, Mifare Classic / Plus iCLASS
  • iClass, SEOS: >85% Non condensating
  • RFID Reading: UID/sector/block
  • Card Range: >2cm
  • Operating Temperature: -20°C - 60°C
  • Humidity: <85% non condensing
  • Approvals: RCM CE
  • Finish: Brushed Satin Chrome
  • Door Thickness: 35-50mm

Product Details

  • Model: AU100-3772
  • Finish: SC
  • Backset: 60mm
  • Lever: 77A
  • Door Thickness: 35-50mm
  • Body Material: Zinc Alloy
  • Override Cylinder: Yes
  • Lock Type: Suited for 3570 and 3770
  • Door Application: Timer door 60mm Backset
