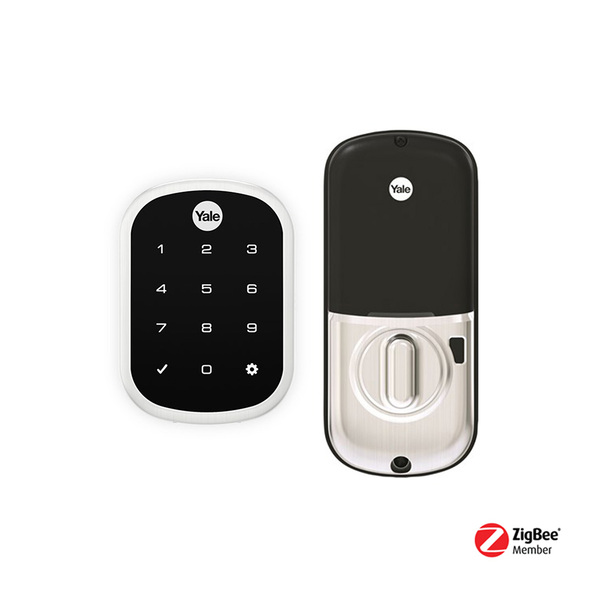

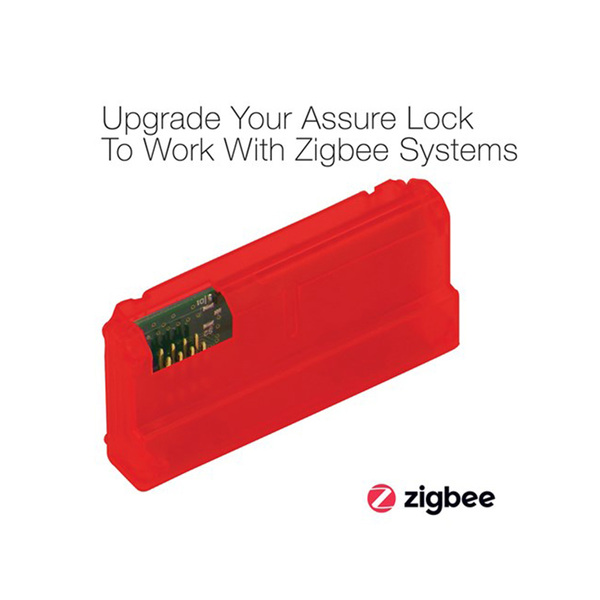

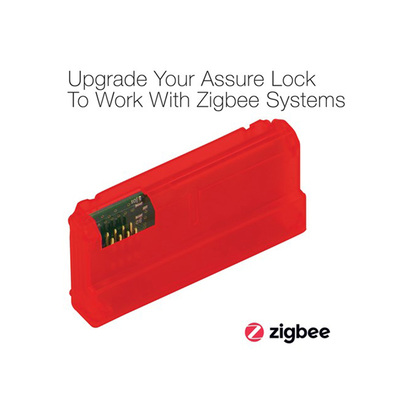

Yale Smart Door Lock - [Option: Zigbee Module Integrated]

SKU: LOKS20012
In stock

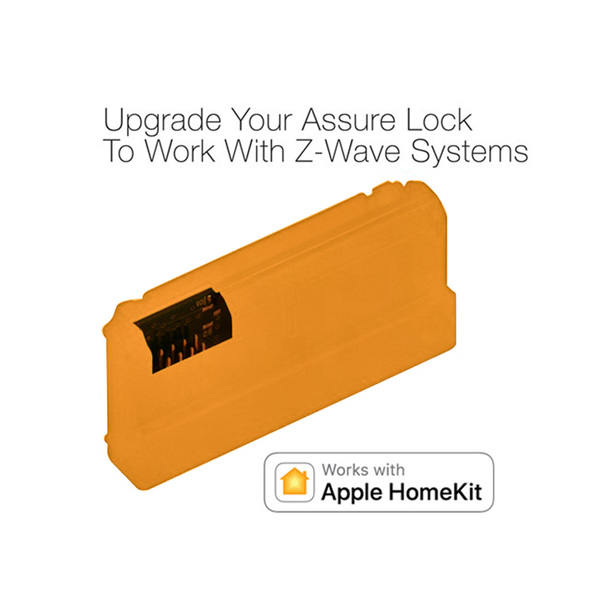

Assure Lock SL - HomeKit Enabled

With iM1 Network Module Lock and unlock your door using your iPhone, iPad or Apple Watch or by simply asking Siri! Hey Siri, Unlock My Door The Assure Lock SL with iM1 responds to Siri, letting you lock and unlock using just your voice. Control From Anywhere When you have an Apple TV (4th gen or later) or an iPad with iOS 10.3 or later set up as a home hub, lock and unlock and manage pin codes or lock settings from anywhere.

Key Free Unlocking

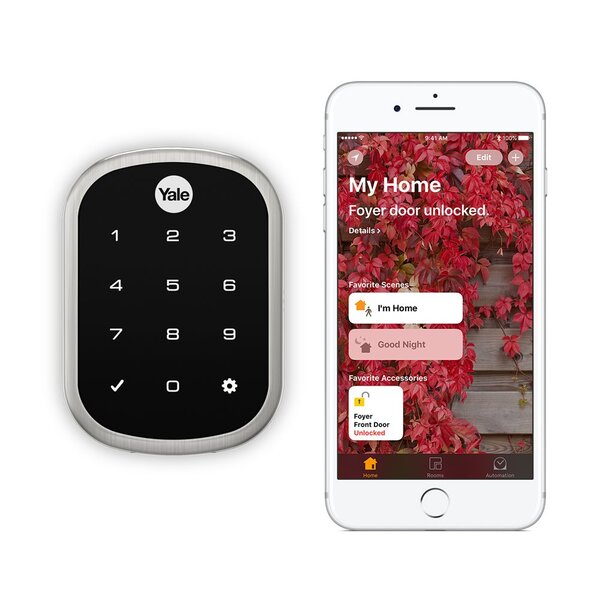

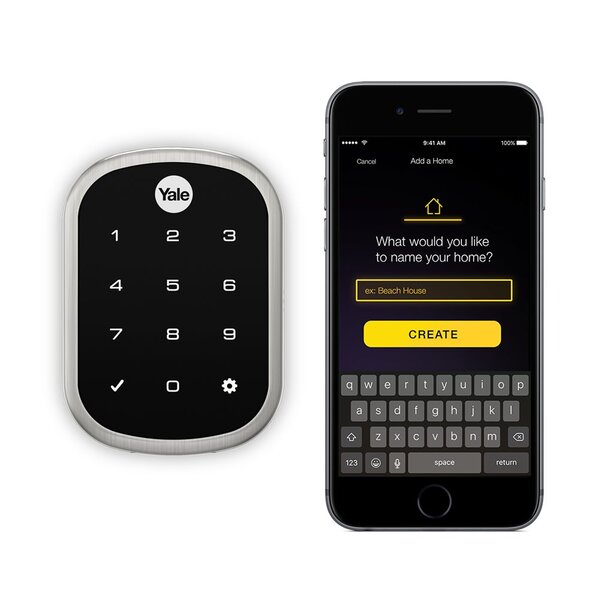

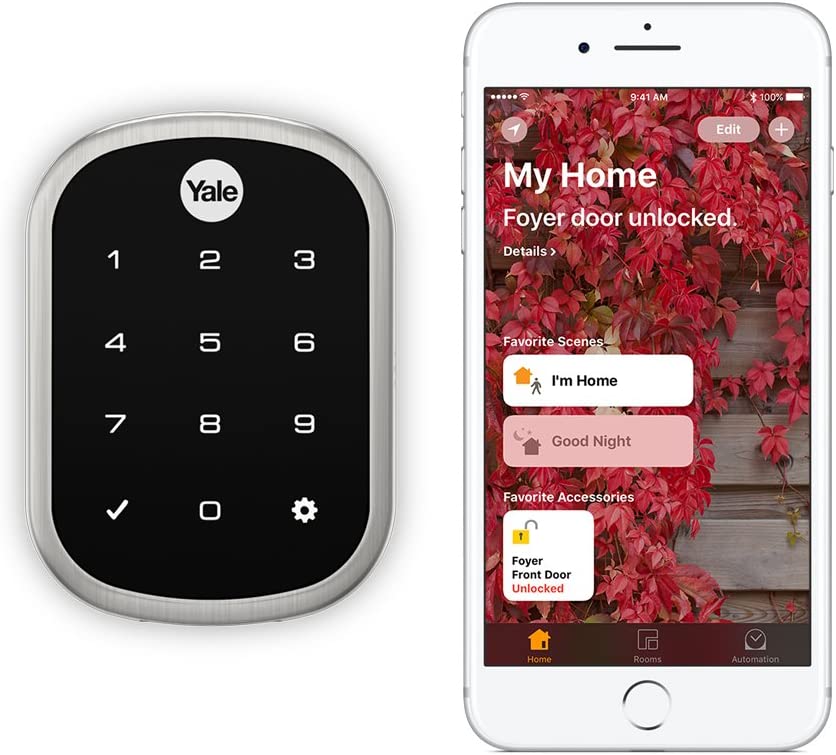

Using Your iPhone, iPad or Apple Watch Use your Apple Home or Yale Secure app to lock or unlock from anywhere when used with an Apple TV 4th Gen or later or iPad with 10.3 or later set up as a home hub.

No Phone? No Problem!

Unlock and lock the door using the backlit touchscreen keypad and your 4-8 digit pin code. Use the Yale Secure app to manage up to 25 unique codes.

Create Unique Pin Codes

  • Create up to 25 unique PIN codes, adjust lock features and personalise your settings.

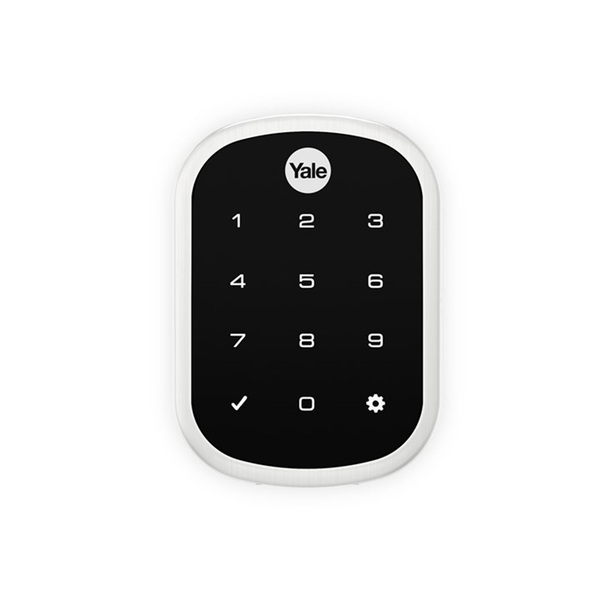

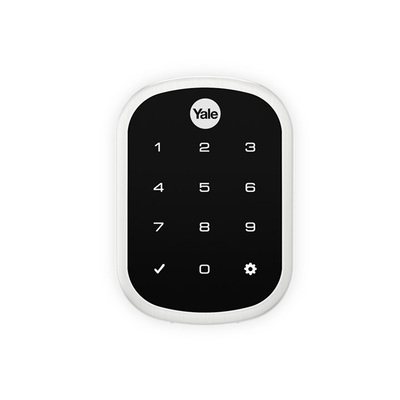

Touchscreen Keypad

  • Unlock by entering your PIN code and lock-up with a simple tap of the keypad.

100% Key Free

  • No cylinder means you don't need to worry about house keys with the Assure SL Lock, the door can always be unlocked using the touchscreen keypad.

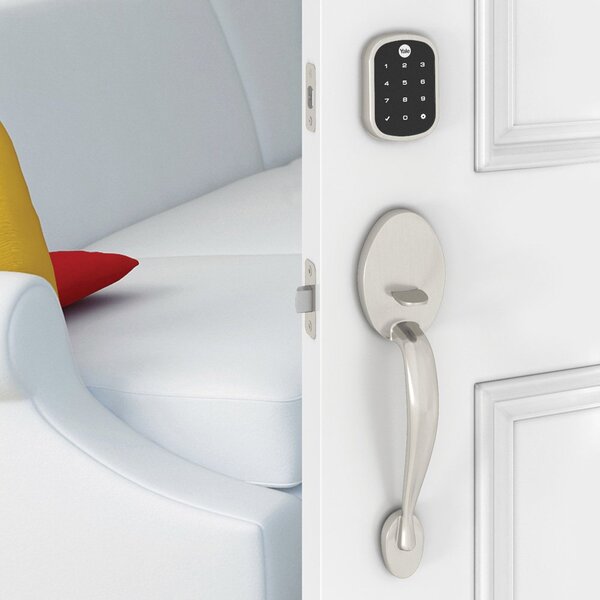

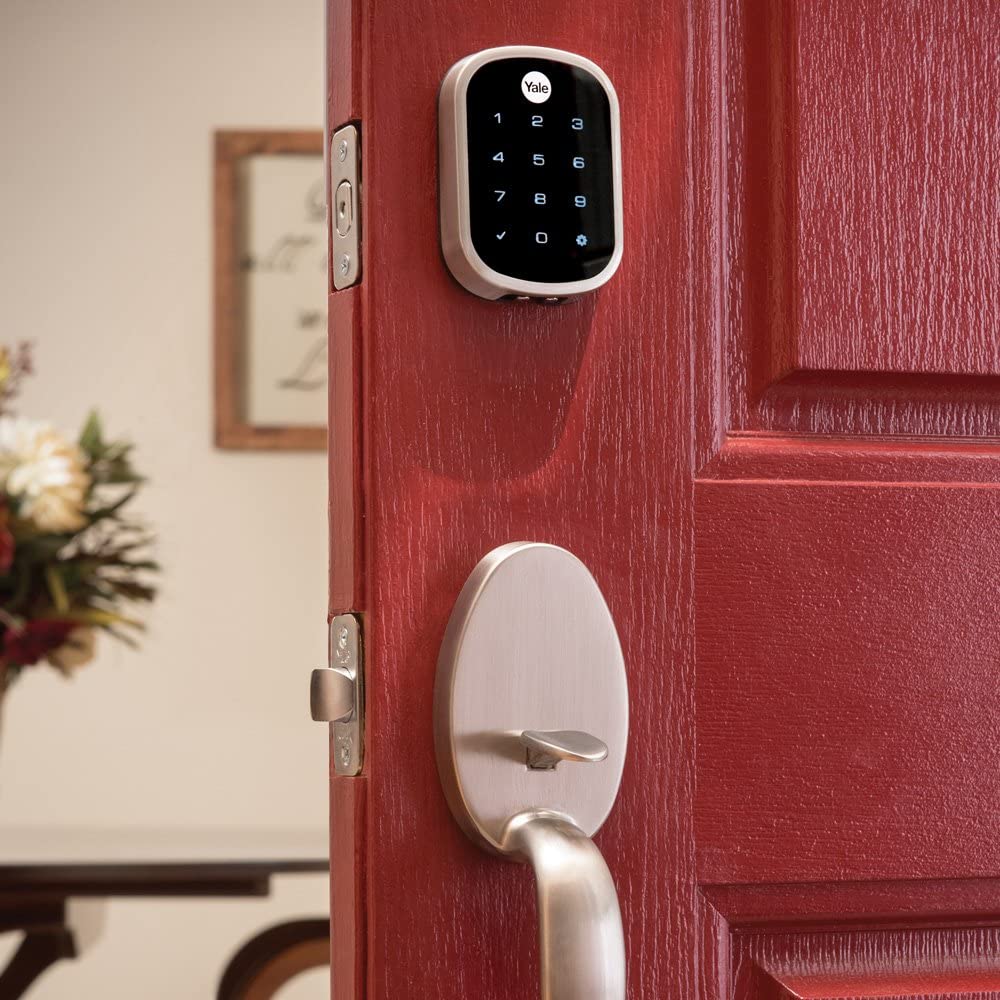

Aesthetic in Design

  • Small and slim in design to suit the modern front door design.


  • Retrofit to a 54mm bore hole. Replace your mechanical deadbolt with the Yale Assure SL digital lock.

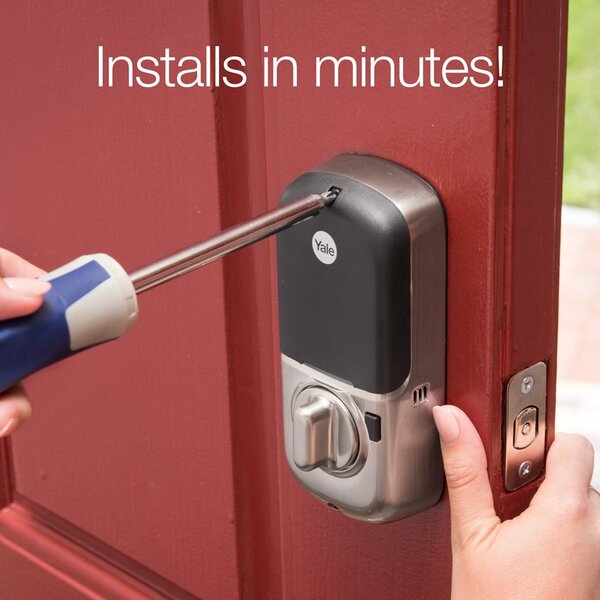

Simple Installation

  • Replaces your existing deadbolt in minutes with just a screwdriver.

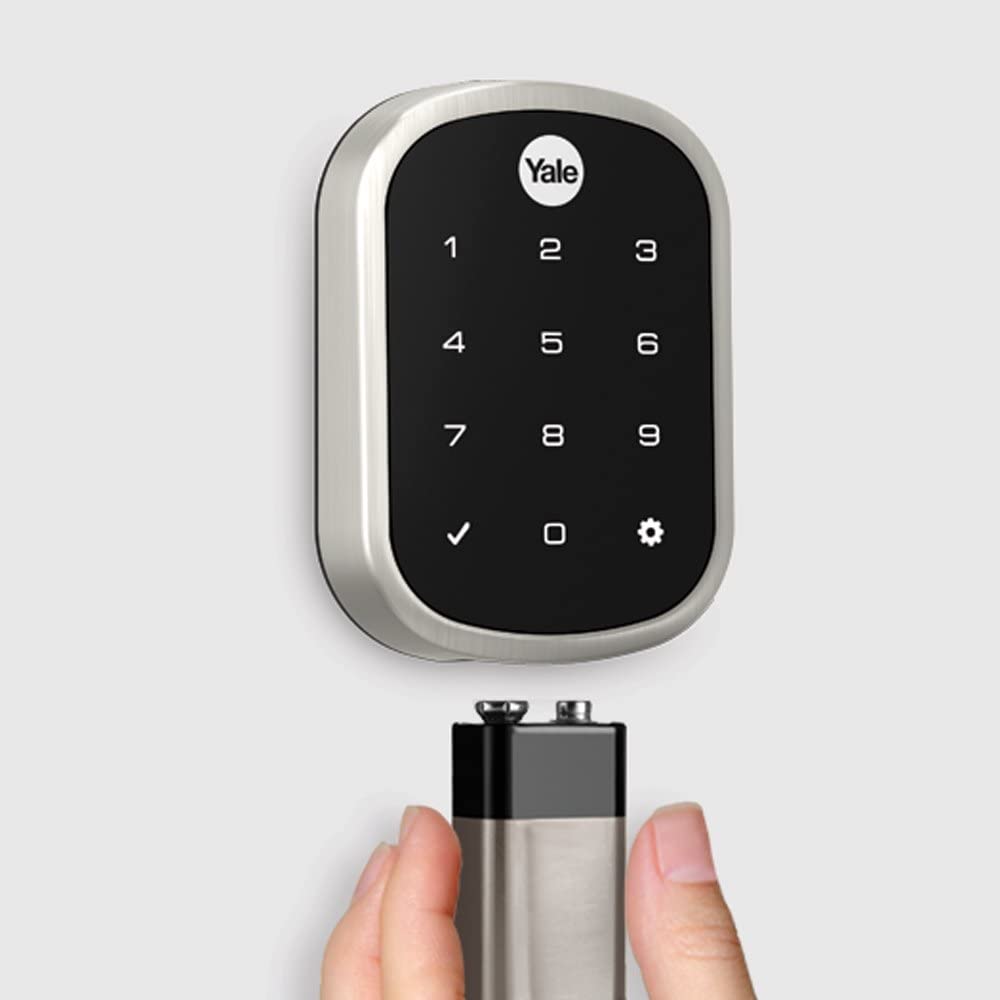

9V battery backup

  • 9V battery backup to gain access to the lock if the batteries are flat. Battery warning is given prior to batteries running flat.
  • Backset Adjustable: 60-70mm
  • Battery type: AA
  • Body / Case Material: Zinc
  • Bolt Type / Function: Deadbolt
  • Door Thickness Range: 35mm to 57mm
  • Door Preparation: 25mm latch hole and 54mm lock hole
  • Lock Type: Deadbolt
  • Standard Finish: Satin Chrome
  • Warranty / Guarantee: Yale 1 year Electromechanical
  • Operational Temperature range: -25C to 60C
  • Operating Humidity: up to 95%
  • Approvals:
    • RCM Compliant (EN 61000.6.3 2012 & EN 55032 2016)
    • ANSI/BHMA A156.36 Grade 2 Certified

Product Dimensions

  • External
    • Height: 92mm
    • Width: 66mm
    • Length: 17mm
  • Internal
    • Height: 175mm
    • Width: 75mm
    • Length: 54mm
