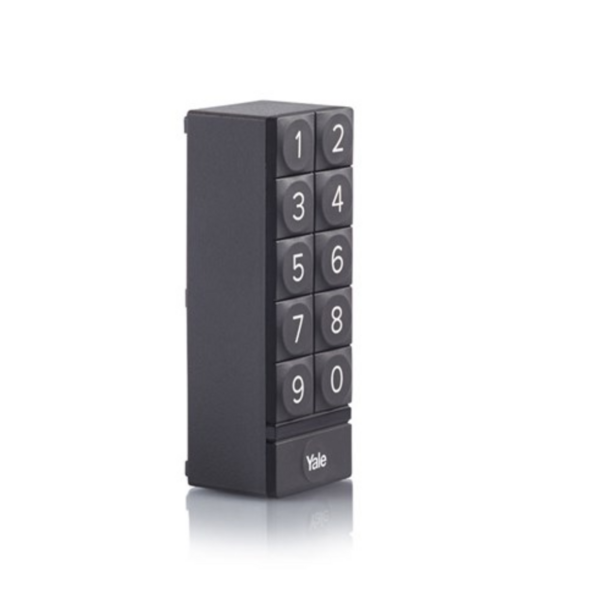

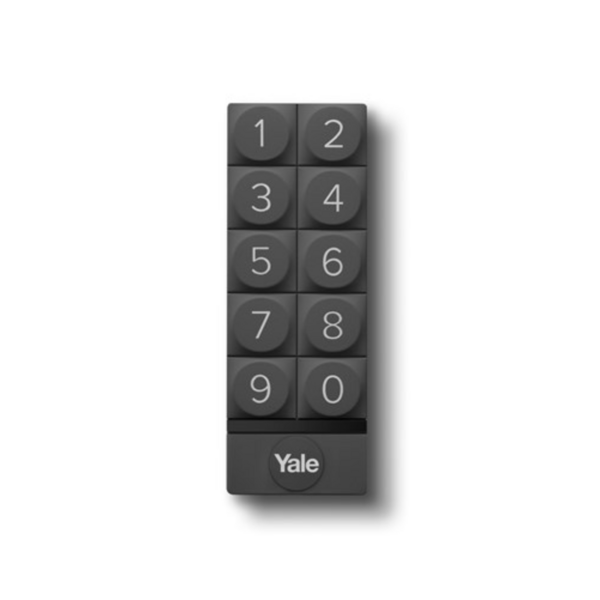

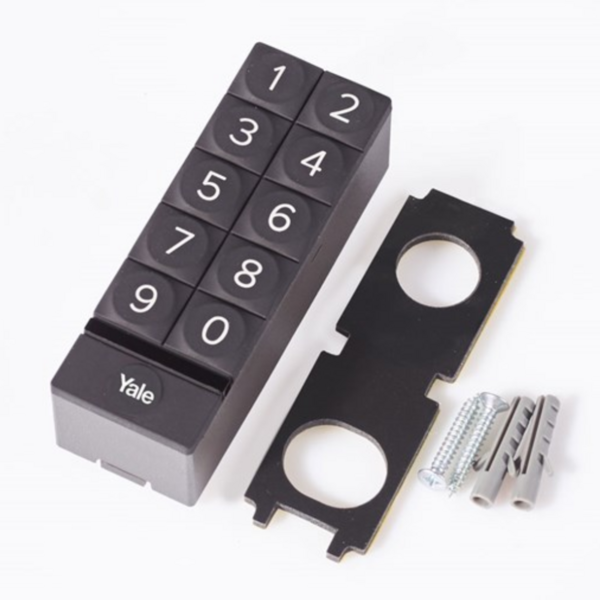

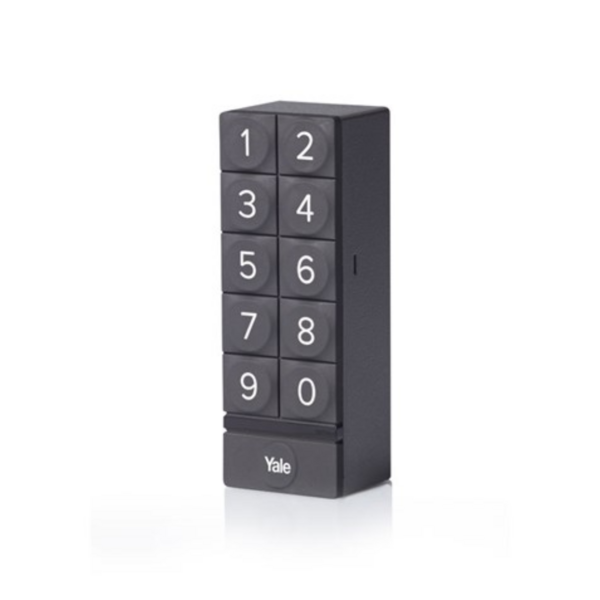

Yale Smart Keypad Only - Bluetooth & App Integrated

SKU: LOKS20001
In stock

Unlock your door with unique entry codes.The Yale Smart Keypad is the ideal accessory to a Yale Smart Lock. Never leave keys under the mat again. Create custom entry codes to unlock your Yale Smart Lock without a traditional key or smartphone.

Yale Smart Keypad is compatible with Yale Unity Series. With the Yale Smart Keypad you can lock and unlock your door via PIN codes. Create and send guests unique entry codes with the Yale Access app.

The Yale Smart Keypad includes the capability to enable One-Touch Locking, meaning you can lock your Delivery Box or Smart Lock just by pressing the Yale button on the bottom of the Keypad. One-Touch Lock notifications are turned off by default, but notifications can be enabled in Keypad Settings.


  • One-Touch Lock notifications will only be received by the person who set them and you must have a Yale, or August, Connect Wi-Fi bridge to receive One-Touch Lock notifications.
  • Works only with Smart Locks controllable via the Yale Access App

How to Set up in the Yale Smart Keypad App?

  • This guide provides steps to set up your Yale Smart Keypad. Before the installation begins, you may be prompted to update the firmware on your lock. Before beginning the setup process, make sure the back light is blinking:
    • Open the Yale Access App and select the 3 lines on the left
    • Select Set up a Device to access the QR code scanner
    • Scan the code. If you are unable to scan it, select Can’t Scan the Code to set up with the Serial Number
    • Follow in-app instructions to complete setup steps
    • Congratulations! Your Smart Keypad is ready to use.
  • Compatible with Yale Unity Series
  • Connects to your Yale Access app to tell you who comes and goes
  • 220 PIN codes
  • One touch locking
  • Hassel free installation. No hard wiring
  • Compliance CE: European Electric Compliant
  • RCM: Australian Electrical Regulatory Compliant
  • Communication: Bluetooth V4.2
  • Dimensions: 73.6h x 25w x 25d mm
  • Power: 2 x AAA alkaline batteries
  • Battery Life: Estimated 3 months
  • Operating Temperature: -17-50c
  • Operating Humidity: 0-90%
  • Material: Finish Black nylon plastic
  • Number of key codes: 220 PIN codes
  • Phone requirement: iOS (9.0 or higher) orAndroid (5.0 or higher) smartphones
