3A 13W LED Downlight Kit - DL1560WH | 90mm | IC-4 | Dimmable | Tri Color

$15.45
SKU: DOWNL10303

Buy In Bulk & Save!

Buy 30 to 100: Pay $12.55
Buy 101 to 200: Pay $11.00
Quantity:
In stock

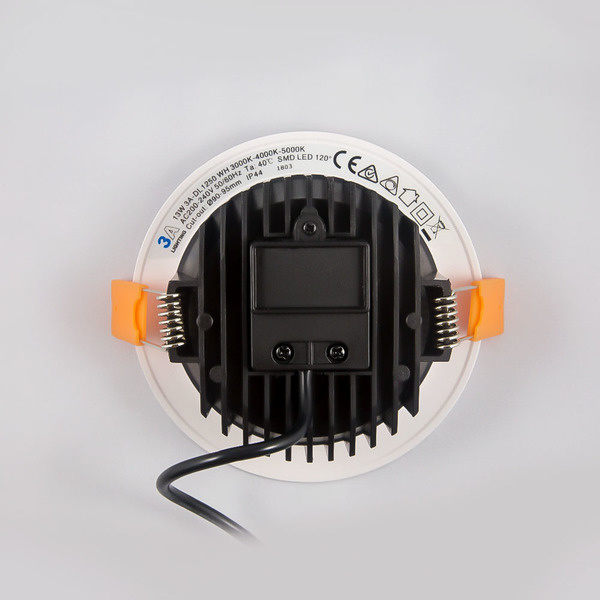

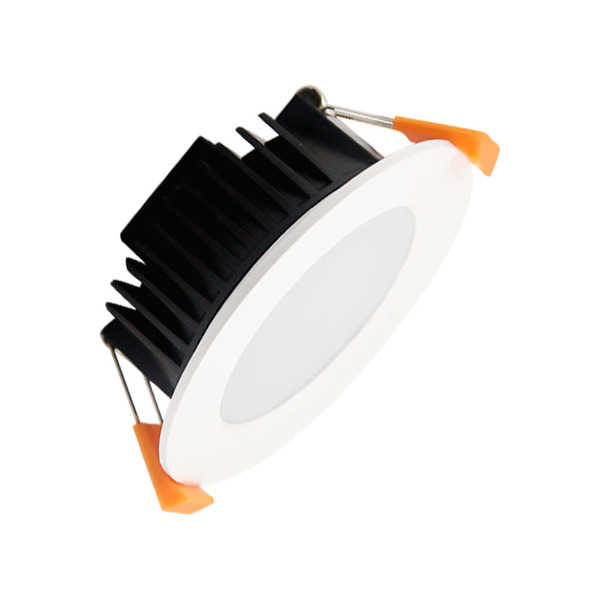

3A 13W Downlight Kit - DL1560WH | White

This Surface Mounted Downlight is designed for concrete/timber ceilings. Wide beam angle with matt diffuser casts a smooth light beam throughout the room, perfect for ceiling 2.7m and under.

  • Lumen: 840 - 1000LM
  • Cutout: 90 - 95MM
  • Color: White

Beam Angle 120°

The beam angle of a lamp is the angle at which the light is distributed or emitted. Lamps such as Halogens (and some LEDs) come in a variety of angles from, 4 degree to 60 degree with some of the larger halogen lamps up to 120degree. These are typical beam angles spread abbreviations.

Tri-Color

The new Dimmable Downlight Tri-colour Series is a revolutionary new  LED downlight, which enables you to switch between three different colour temperatures on the go. The luminaire allows you to change colour between warm white, cool white and daylight at the flick of a switch.

Dimmable

Led Downlights are relatively new to the lighting market, they look fantastic in homes, are easy to install and come in a dimmable or non-dimmable format. LED downlights are an alternative to pendant fittings that clutter the room, Create an exclusive clean feel by adding downlights to your home.

Calculate Lumens

Wattage Average Lumen Output
5W 450lm
8W 650lm
9W 730lm
10W 875lm
12W 950lm
13W 1000lm
14W 1200lm

Measurement Unit Feet Inches Meters


Select a layout

Measure the area and enter it here:

Length (in meters):

Width (in meters):

Calculate Placement & Spacing of Lights

0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0


  • Allowing change between 3 Pre-set Colour-temperatures by colour switch on back of light (3000K - 4000k - 5000K)
  • Dimmable range 3% - 100%
  • SMD LED chips sets
  • IC-4 recessed luminaire, low fire hazard risk
  • An average lifespan of 40,000 hours
  • Dimmable via trailing edge and universal dimmers
  • High energy-efficient LED chips and a translucent diffuser
  • Aluminium heat sink with a polycarbonate shell

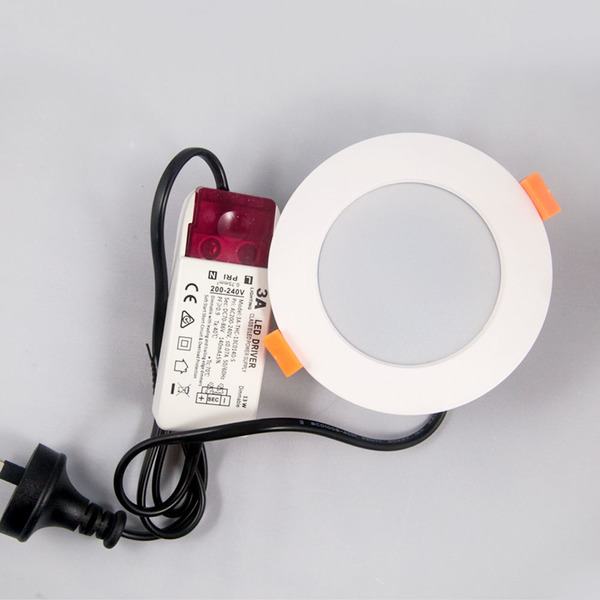

  • Comes with AU standard Plug and 0.7m extension cable
  • 3 years replacement warranty
  •  Input: AC200-240V 50-60Hz
  •  Wattage: 13W
  •  Cut-out Size: 90 - 95mm
  •  Beam Angle: 120º
  •  Dimention (D x H): 109 x 50mm
  •  Insulation Contacting Rating: IC - 4
  •  Lifespan: > 40,000Hrs
  •  Lumen Output: 840 - 1000lm
  •  Dimmable: Yes
  •  Colour Temperature: 3000K - 4000K - 5000K
  •  Warranty: 3 Years

3 Year Replacement Warranty
