Blauberg Sound Insulated Iso-Mix 2 Speed Exhaust AC Fan - 315MM | 1130CFM

$1,102.95
SKU: FANS40104
Quantity:
Backorder available
Contact us at (02)83860784 for more information

The Blauberg Iso-Mix silenced fan can be used for indoor cultivation or for any premises such as, bathrooms, kitchens or libraries, that require high pressure, powerful air flow and low noise level. At 40dBA when the fan is on high speed, this is the quietest 315MM fan available on market today.

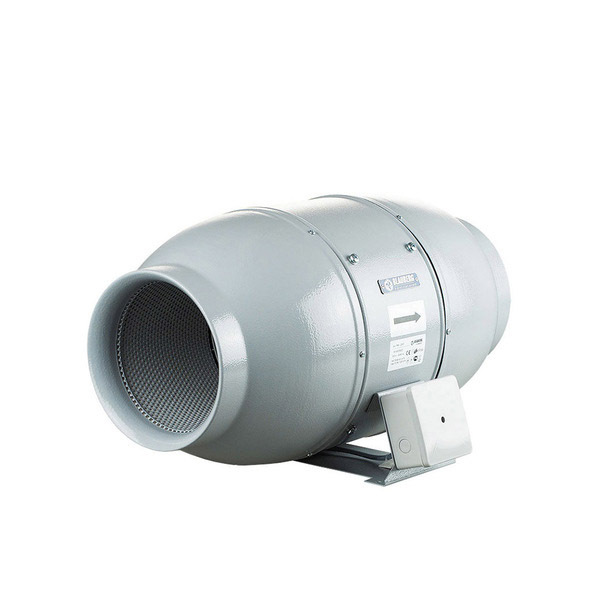

German made in-line sound insulated duct fan. Features include Polymer coated steel case which is internally filled with 50mm mineral wool. The special inner perforated casing and thermal sound insulated layer are designed for a wide range of frequencies. The specially profiled impeller provides high performance and powerful pressure combined with low noise operation. Double speed motor and quality bearings offer quiet smooth operation. Built in overheating thermal protection.

  • The casing is made of polymer-coated steel, internally filled with 50 mm mineral wool thermal- and sound-insulating layer.
  • Special inner perforation of the casing and sound-insulating material are designed for wide-frequency sound absorbing.
  • Mixed-flow impeller made of high-quality plastic.
  • The diffusor, the specially profiled impeller and directing vanes provide high performance and powerful pressure combined with low noise operation.
  • External airtight terminal block on the fan casing for power supply.
  • Mounting brackets on the fan casing for mounting to the floor, to the wall or ceiling.
  • Double-speed single-phase high-efficient motor with low energy demand on ball bearings.
  • Overheating protection by built-in thermal switches.
  • Motor ingress protection rating IPX4.
  • Speed adjustable
  • Designed & Made in Germany
  • Phase, [˜]: 1
  • Voltage, [V]: 230
  • Frequency, [Hz]: 50/60
  • Power, [W] (min): 213
  • Power, [W] (max): 313
  • Current, [A] (min): 0.93
  • Current, [A] (max): 1.41
  • Maximum air capacity, [m³/h] (min): 1510
  • Maximum air capacity, [m³/h] (max): 1920
  • RPM, [min-¹] (min): 2120
  • RPM, [min-¹] (max): 2620
  • Sound pressure level at 3 m distance, [dBA] (min): 36
  • Sound pressure level at 3 m distance, [dBA] (max): 40
  • Max. operating temperature, [°C]: 60
  • Ingress protection rating: IP X4

ISO-Mix 315 Dimensions

  • D1: 313MM
  • B: 432MM
  • H: 520MM
  • L: 780M
  • Weight: 25KG
