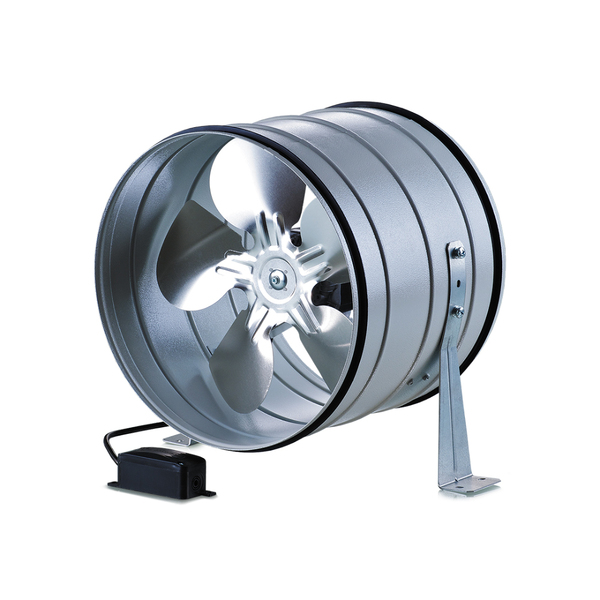

Blauberg Turbo-M Axial Inline Fan w/ Wall Bracket - 250MM (10") | 68W | 360CFM

$169.95
SKU: FANS20103
Quantity:
Backorder available
Contact us at (02)83860784 for more information

Use

  • Supply and exhaust ventilation systems installed in various premises. ‰ Mounting in ventilation systems with low static pressure requiring high air capacity.

Design

  • Compact steel casing covered with special polymer coating (Tubo-M series)
  • Aluminium impeller.
  • The fan is equipped with a power cord and external terminal block for connection to power mains.

Motor

  • Single-phase asynchronous external rotor motor with axial impeller.
  • Equipped with ball bearings for longer service life.
  • Integrated thermal protection with automatic restart.
Parameter Value
Voltage, [V] 230
Frequency, [Hz] 50
Power, [W] 68
Current, [A] 0.48
Maximum air capacity, [m³/h] 630
RPM, [min-¹] 1300
Sound pressure level at 3 m distance, [dBA] 48
Max. operating temperature, [°C] 40
Ingress protection rating IP X4
