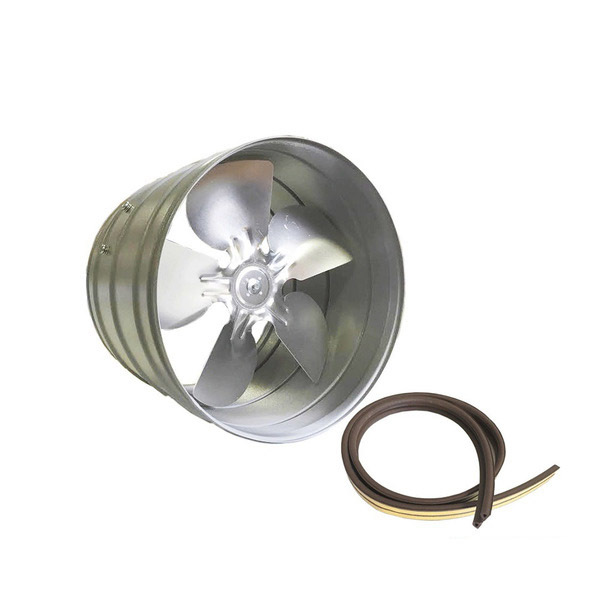

Blauberg Turbo-M Axial Inline Fan w/ Wall Bracket - 315MM (12") | 110W | 1000CFM

$178.95
SKU: FANS20104
Quantity:
Backorder available
Contact us at (02)83860784 for more information

Use

  • Supply and exhaust ventilation systems installed in various premises. ‰ Mounting in ventilation systems with low static pressure requiring high air capacity.

Design

  • Compact steel casing covered with special polymer coating (Tubo-M series)
  • Aluminium impeller.
  • The fan is equipped with a power cord and external terminal block for connection to power mains.

Motor

  • Single-phase asynchronous external rotor motor with axial impeller.
  • Equipped with ball bearings for longer service life.
  • Integrated thermal protection with automatic restart.
  • Voltage, [V]: 230
  • Frequency, [Hz]: 50
  • Power, [W]: 110
  • Current, [A]: 0.75
  • Maximum air capacity, [m³/h]: 1700
  • RPM, [min-¹]: 1300
  • Sound pressure level at 3 m distance, [dBA]: 54
  • Max. operating temperature, [°C]: 40
  • Ingress protection rating: IP X4
