Blauberg Turbo Mixed Flow AC Fan - 250MM (10" Inch) | 1400 M³/H | 2 Speed | IPX4

$684.95
SKU: FANS35103
Quantity:
In stock

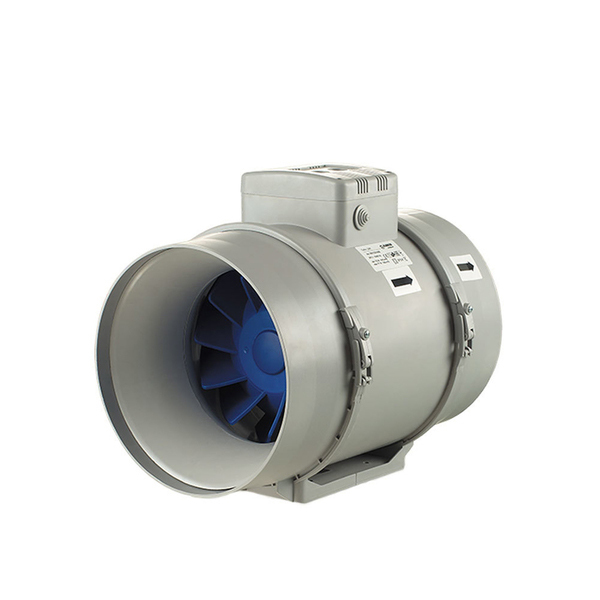

Blauberg Turbo Mixed Flow AC Fan 250MM is a high-capacity inline exhaust fan built for long duct runs and large rooms. With up to 1400 M³/H airflow through 250MM (10" Inch) duct, it is ideal for big bathrooms, laundries, kitchens, workshops and light commercial amenities where serious extraction is required.

The mixed flow impeller and 2-speed AC ball bearing motor give tradies and builders the choice between lower noise on low speed or maximum pull on high speed. A low-flammable polypropylene housing, IPX4 rating and 60°C air temperature limit mean it is well suited to Australian ceiling spaces and humid areas.

Supplied with lead and plug plus external two-speed switching, the Turbo 250 installs quickly and can be mounted in any orientation inline with ductwork. The removable motor block allows servicing without pulling apart the system, making it a great option for ongoing ventilation maintenance. Add this Blauberg Turbo 250 inline fan to your cart for your next high airflow job.

These Blaubergs mixed flow fans offer a range of features including;

  • Casing made of low flammable polypropylene
  • Single-phase motor on ball bearings
  • Equipped with thermal overload protection with automatic restart
  • Phase, [˜]: 1
  • Voltage, [V]: 230
  • Frequency, [Hz]: 50/60
  • Power, [W] (min): 125
  • Power, [W] (max): 177
  • Current, [A] (min): 0.54
  • Current, [A] (max): 0.79
  • Maximum air capacity, [m³/h] (min): 1070
  • Maximum air capacity, [m³/h] (max): 1360
  • RPM, [min-¹] (min): 1955
  • RPM, [min-¹] (max): 2440
  • Sound pressure level at 3 m distance, [dBA] (min): 47
  • Sound pressure level at 3 m distance, [dBA] (max): 55
  • Max. operating temperature, [°C]: 60
  • Ingress protection rating: IP X4

Turbo 250 Dimensions

  • D1: 247MM
  • B: 257MM
  • H: 287MM
  • L: 383MM
  • Weight: 7.83KG
